Class 200 pipe the most common class pipe used in irrigation is rated for 200 pounds per square inch pressure psi and has a wall thickness of 063 for a 1 pipe. Hydrotek K Rain 6000 Valve Parts. The right size pipe depends on the overall capacity of your system. This is called the Critical Length and represents the hundreds of feet of pipe in which you can afford to lose the pressure you determined was acceptable for. How do I know what size irrigation pipe I need. Key points in designing an irrigation system include. Ad Conserve Up To 60 Of Water Nutrients And Time By Utilizing More Efficient Methods.

In the 12 size a thickness ratio of 21 would result in pipe which would be too floppy to handle so 12 pipe is commonly available in SDR 135 rated at 315 psi.

Basics of an Irrigation System There are a few basics that every irrigation system needs. Take The Guesswork Out Of Feeding And Take Control Of Your Setup. Typically made of polyethylene the lateral lines branch off of the main line to supply the plants with. Annual irrigation cost as varied by main-line pipe size. Learn more about the units used on this page. The irrigation system must be able to.

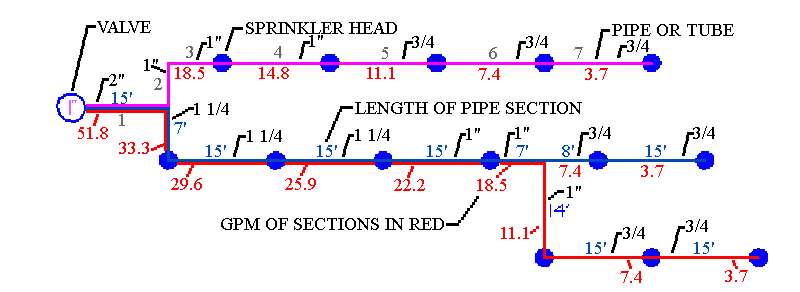

Calculating Sprinkler System Pipe Size Using A Spreadsheet

Irrigation system pipe size. If you use PVC the typical diameter of the pipes is between 12 inch and 2 inches. It is necessary that the system design consider water cost. 12 inch laterals clog very easily.

Enter the Size of the Meter Here. Hydrotek K Rain 6000 Valve Parts. Take The Guesswork Out Of Feeding And Take Control Of Your Setup.

No I dont own stock in an irrigation pipe manufacturer and Im not getting kickbacks for pushing bigger pipe. If you are uncertain whether to use a 34 or 1 pipe then you should use the 1. Take The Guesswork Out Of Feeding And Take Control Of Your Setup.

The size of the pipelines irrigation system flow rates and the size and type of pumping plant to be used. Basics of an Irrigation System There are a few basics that every irrigation system needs. Write the Service Line Size Here.

Learn more about the units used on this page. The mainline pipe sizing uses the Hazen-Williams formula to size the pipe. PIPE SIZE inches 4 5 6 8 10 12 12000 8000 4000 0 ANNUAL COST yr ENERGY COST TOTAL COST MINIMUM PIPELINE COST PNW 290 Reprinted October 1997 Sizing Irrigation Mainlines and Fittings W.

Divide this number by 100 to determine the hundreds of feet from the valve to the farthest head. The irrigation system must be able to. Unlike clothing pipe can never be too large.

It is important to use the appropriate size pipe for your flow rate. First find a piece of string.

Calculating Sprinkler System Pipe Size Using A Spreadsheet

Florida Water Star Technical Manual Irrigation Pipe Sizing

Irrigation Pipe Sizing Chart For Laterals

Sprinkler Com Sprinkler System Design Capacity

Calculating Sprinkler System Pipe Size Using A Spreadsheet

Calculating Sprinkler System Pipe Size Using A Spreadsheet

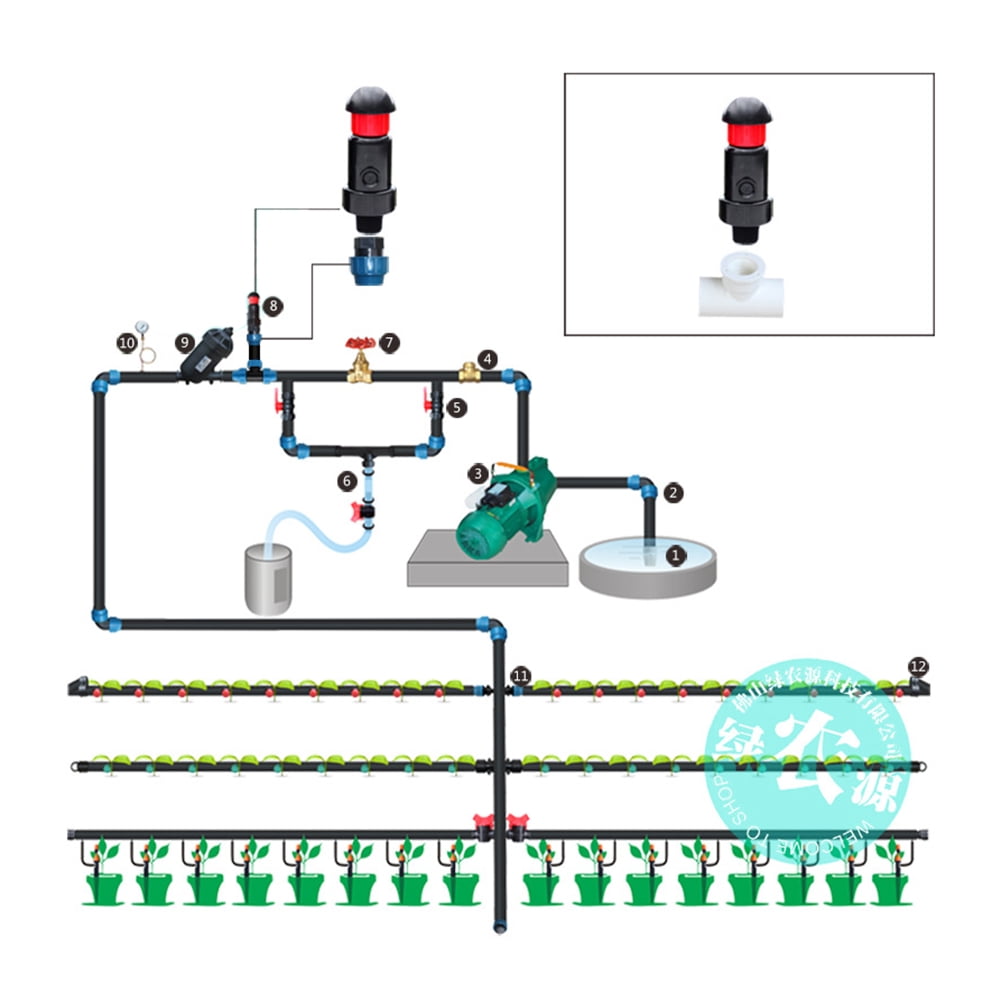

Irrigation System Layout Pipe Sizes Main Line And Valve Locations

Jockey Pump Requirements Sizing Nfpa 20 Fire Protection Specialists

How To Determine What Pipe Size You Need Sprinkler School

System Components View Designer Watering Systems

Calculating Sprinkler System Pipe Size Using A Spreadsheet

Nfpa 13 Pipe Schedule Method For Firefighting Sprinkler System Designing In Urdu Hindi Youtube

Sprinkler Com Locate Valves And Size Pipes

Using Flexible Pipe Poly Pipe With Surface Irrigation

Lawn Sprinkler Pipe Blog Post Bio Green Outdoor Services Llc

Media Neliti Com

Florida Water Star Technical Manual Irrigation Pipe Sizing

Dry Sprinkler Systems Parts And Installation Requirements

How To Calculate A Fire Sprinkler System

Igc Greenhouse Irrigation Design Basics

Irrigation Pipe Sizing Chart For Laterals

Dry Sprinkler Systems Parts And Installation Requirements

Pin On Irrigation Gardening

1

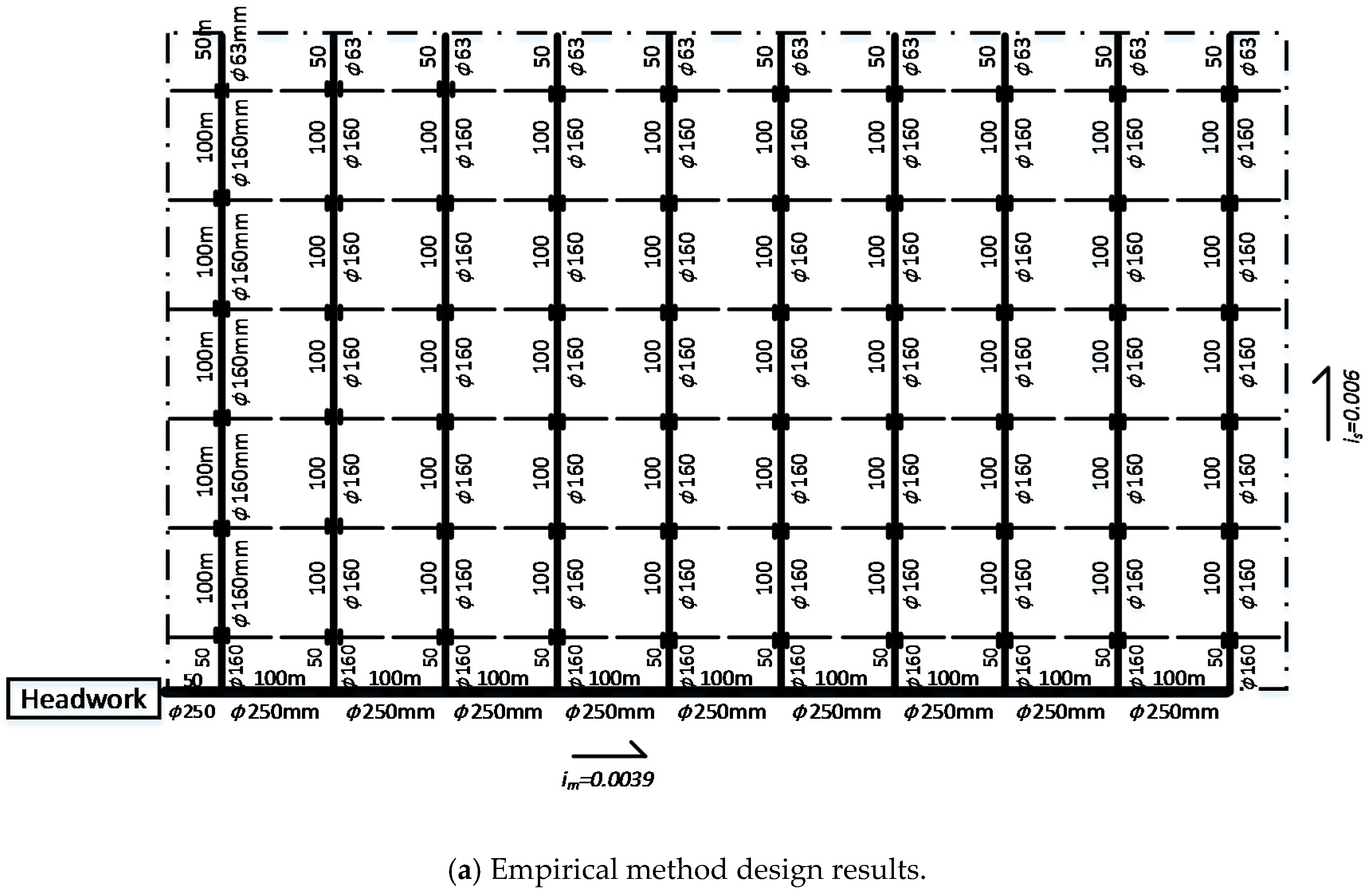

Water Free Full Text Synchronization Optimization Of Pipeline Layout And Pipe Diameter Selection In A Self Pressurized Drip Irrigation Network System Based On The Genetic Algorithm Html
